Liquid Level Sensor & Float Switch


Description :

This sensor is a device used to sense the level of liquid water within a tank, it may actuate a pump, an indicator, an alarm, or other devices.

Specification :


1、Cable length : 30cm

2、Maximum Contact Rating : 10W

3、Maximum Switching Voltage : 100VDC

4、Minimum Breakdown Voltage: 220VDC

5、Maximum Switching Current : 0.5A

6、Maximum Carry Current : 1.0A

7、Max Contact Resistance : 0.1 Ω

8、Temp Rating : -10°C to +85°C

9、Net weight : 16g

10、Float Ball Material : P.P

11、Float Body Material : P.P+GF

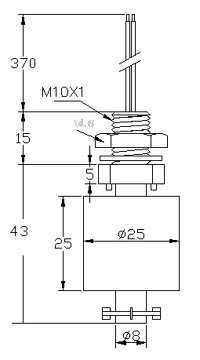

Structure Drawing :
